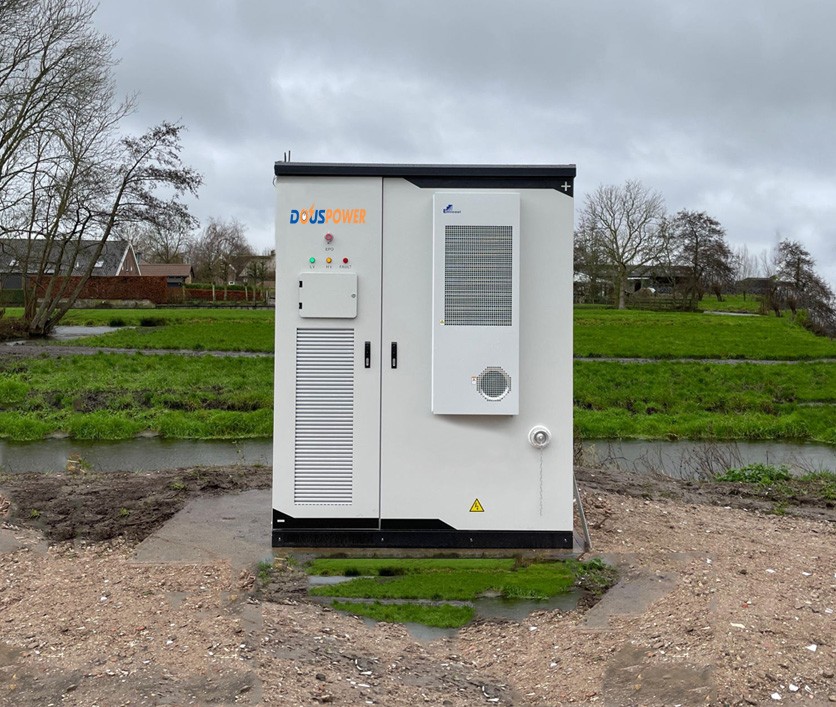

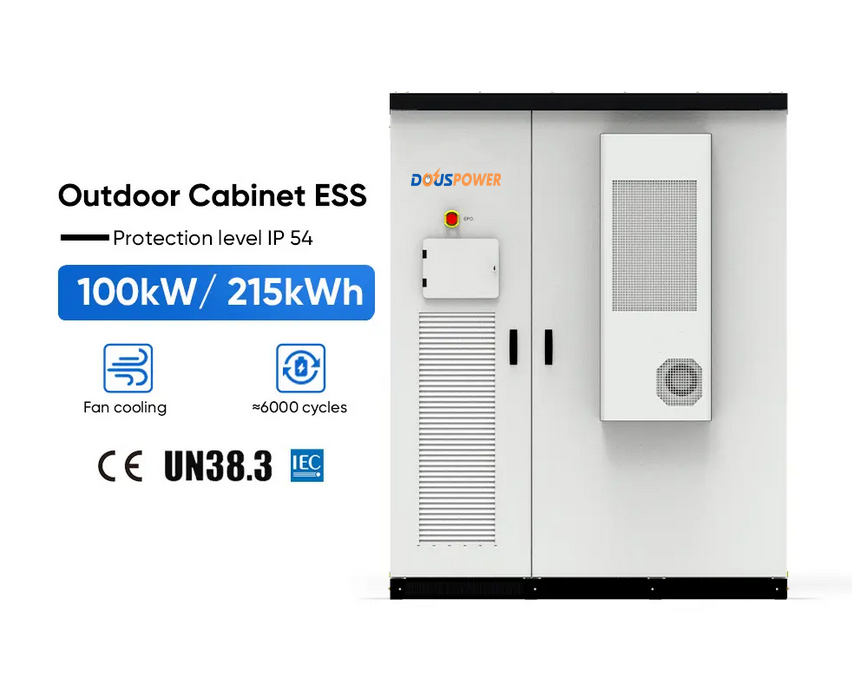

215KWH Outdoor Cabinet Battery System

Energy Storage System 100kw 215kwh 240kwh All-in-one ESS Cabinet

Model: DP-215
Battery Capacity: 215KWH

INQUIRY

100KW PCS with 200kWh / 215kWh / 225kWh / 241kWh Comercial ESS Battery System

New class a high-reliability lithium iron phosphate battery, green and environmentally friendly
Intelligent integrated BMS, all-round protection strategy and fault detection
Built-in fire extinguishing device, automatically deal with ultra-early warning thermal runaway status
Bottom tripod design, standard cabinet for easy installation and easy maintenance
Modular design, parallel expansion, flexible choice of voltage and capacity
Large capacity, high charging and discharging efficiency, more than 6000 cycles

Model Number	Dous-ESS215 (100kW/215kWh)
Battery rated capacity	215kWh
Battery rated voltage	768V
Battery voltage range	672V~864V
Battery type	Lithium iron phosphate battery(LFP)
Battery cell capacity	280Ah
Series of Batery	1P20S12S
Maximum charge and discharge current	140A
Photovoltaic rated capacity	100kW
Photovoltaic voltage range	200~450V
Rated AC power	100kW
Rated AC current	144A
Rated AC voltage	400V, 3W+N+PE/3W+PE
Rated AC frequency	50/60Hz
THDI	<3% (Rated power)
Power Factor	-1 leading to+1 lagging
THDU	<3%(Linear Load)
Degree of protection	IP54
Protective Class	/

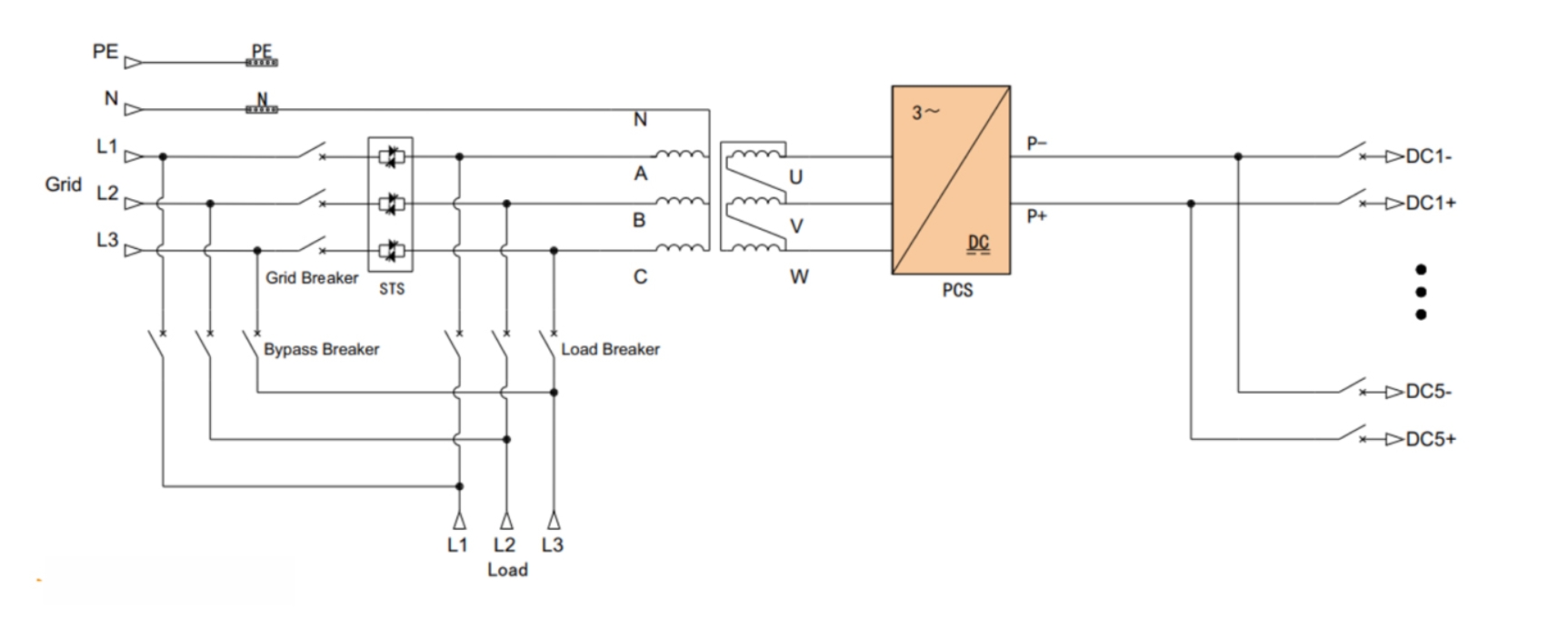

Isolation mode	No-Isolation(A ding isolation transformer is optional)
Shutdown self-discharge	<100W (Without transformer)
Display	LCD
Relative humidity	0 ~ 95%(no condensation)
Noise	<78dB
Ambient temperature	-25°C to +60°C(with derating at temperatures above 45°C)
Cooling mode	Intelligent air-cooled
Altitude	3000m (> 3000m reduction)
Communication interface	CAN/Ethernet/485

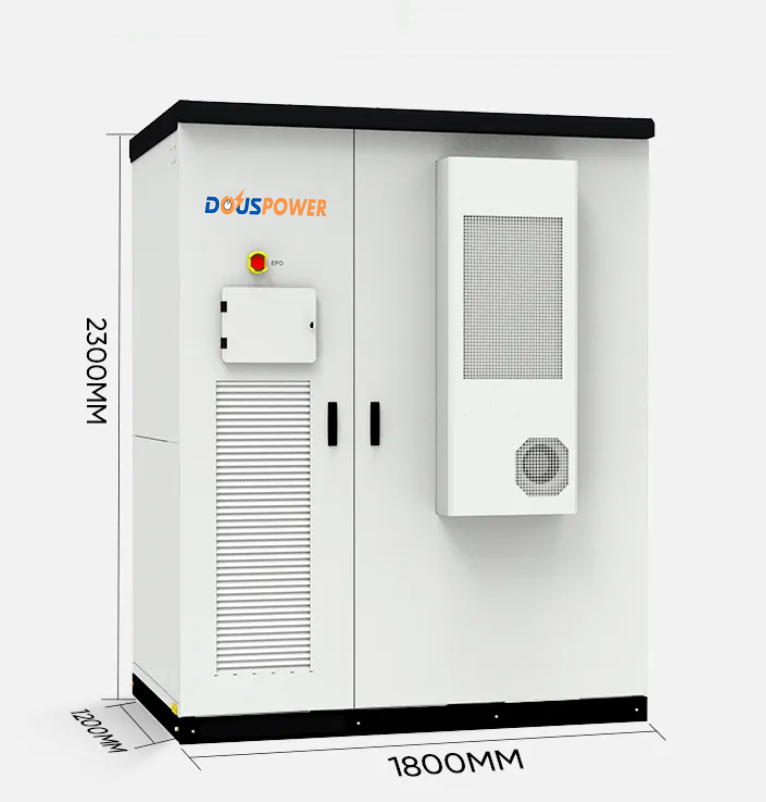

Size (WDH)	180012002300mm
Weight (approx.)	3100kg
