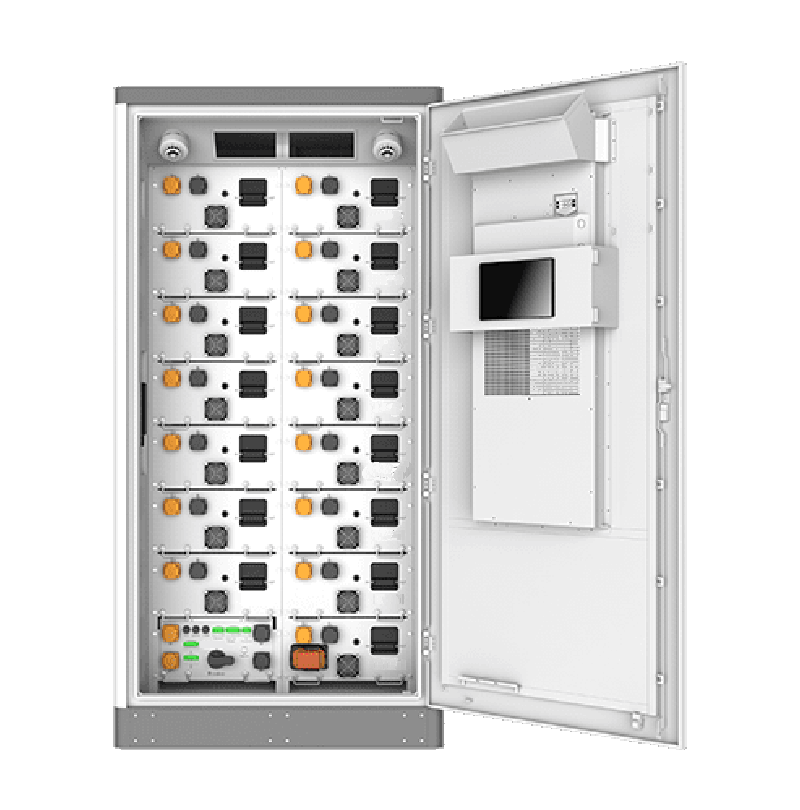

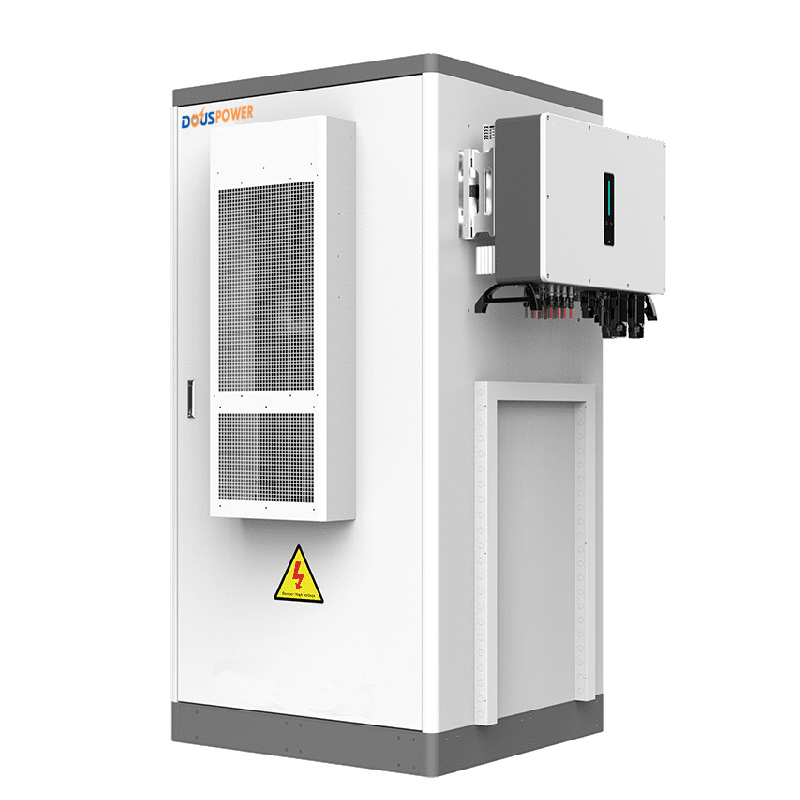

Outdoor C&I Cabinet (External Inverter)
50Kw 100Kwh 200kwh Lithium Ion Battery Cabinet Energy Storage System with On-Grid & Off-Grid Connection Air-Cooled Cabinet
The Dous Power Outdoor Cabinet with External Inverter is a cutting-edge energy storage solution tailored for commercial and industrial applications. Combining high-performance storage capabilities with an adaptable external inverter system, it provides unmatched flexibility and efficiency for a wide range of energy management needs.
Key Features:
- External Inverter Integration: Offers the flexibility to pair with a variety of inverter systems, allowing customisation based on specific project requirements.
- Durable Outdoor Design: Built to withstand challenging environments, this cabinet features weatherproof construction and an IP-rated enclosure for reliable performance year-round.
- Scalable Storage Options: Modular design supports expandable energy capacity to adapt to growing demands.
- Advanced Safety Mechanisms: Equipped with state-of-the-art safety features, including fire protection, short-circuit prevention, and temperature regulation.
- Comprehensive Monitoring: Provides advanced monitoring and management tools for real-time system insights and remote control, ensuring efficient operation and easy maintenance.
Applications:
- Load balancing and energy storage for industrial sites
- Renewable energy systems for commercial properties
- Emergency backup power for critical systems
- Enhanced energy efficiency for EV infrastructure
The Dous Power Outdoor Cabinet with External Inverter is designed to empower businesses with reliable, scalable, and future-ready energy storage solutions, helping you reduce costs and contribute to a sustainable future.
Battery
|
Cell type |
LFP3.2V/280Ah |
|
Battery pack |
51.2V/280Ah(1P*20S);14.336kWh |
|
Battery rack |
716.8V/280Ah((1P*16S)*14S) 200.704kWh |
|
Battery capacity |
200.704kWh |
|
Battery voltage range |
627V ~ 806V |
|
Rated Charge C-rate |
0.5C |
|
Cycles |
>6000 |
AC Data
|
AC output power |
|
50KW |
|
Max. AC power |
|
50KW |
|
Max. AC current |
|
70A |
|
Nominal AC voltage |
|
315Vac/400Vac, 3W+PE |
|
AC voltage range |
|
315Vac/400Vac, (-20%~+15%) |
|
Grid frequency (Grid frequency rangge) |
|
50/60Hz |
|
AC current THD |
|
<3% |
|
Power factor / Adjustable power factor |
|
>0.99(at nominal power)/1 leading-1 lagging |
|
Adjustable reactive power |
|
-100%~100% |
|
|
|
|
|
PV side |
||
|
Maximum input voltage |
|
1000v |
|
Rated voltage range |
|
600V |
|
MPPT voltage range |
|
150V-850V |
|
Maximum input current |
|
4*40A |
|
Numbers of MPPT |
|
4*8 |
|
|
|
|
|
Efficiency |
||
|
Max. efficiency |
>98.5% |
|
|
|
||
|
Protection |
||
|
Overvoltage protection |
|
DC Type II / AC Type II |
|
Grid monitoring / Ground fault monitoring / Insulation monitoring |
|
Yes / Yes / Yes |
|
Overheat protection |
|
Yes |
|
|
|
|
|
General Data |
||
|
Dimensions (W * D * H)mm |
1260mmx1100mmx2200mm |
|
|
Weight(kg) |
2T |
|
|
Isolation method |
Non Isolated |
|
|
Ingress protection rating |
IP54 |
|
|
Operating ambient temperature range |
-30~+55℃ |
|
|
Relative humidity range |
0~95% (no condensation) |
|
|
Cooling method of battery chamber |
HVAC |
|
|
Cooling method of PCS chamber |
Intelligent forced air cooling |
|
|
Firefighting system of battery bank |
extinguishment system |
|
|
Operating altitude |
2000m |
|
|
Display |
Touch screen |
|
|
Communication interfaces |
RS485 / CAN/ Ethernet |
|
|
Communication protocols |
MODBUS-RTU/MODBUS-TCP |
|
|
Certificates |
CE, UN38.3,IEC62619, IEC6100-6-4 |
|
