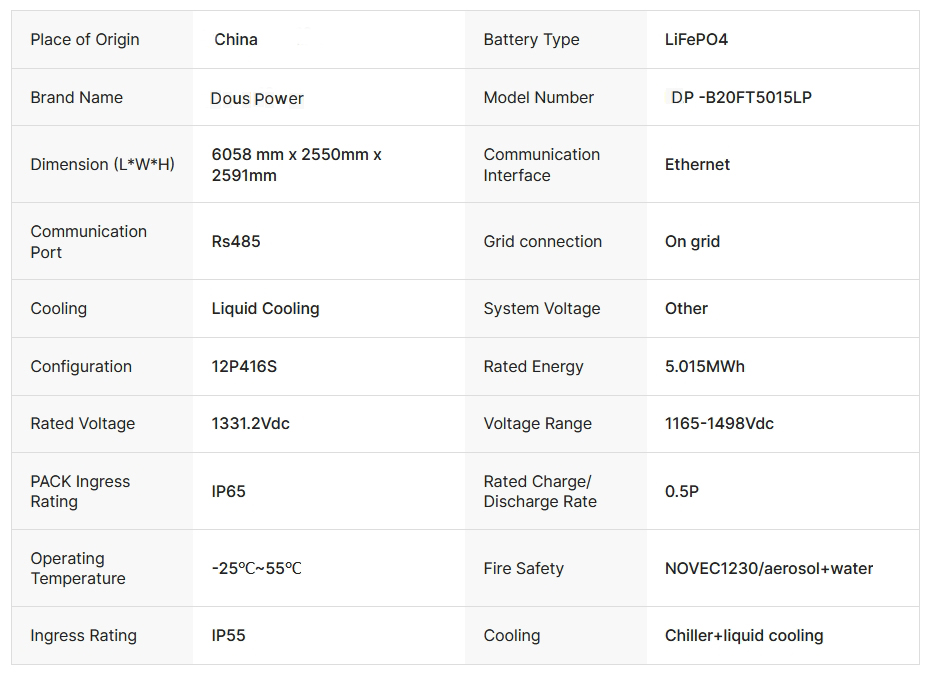

System Specification
| Model Type | 5.015 MWh | |
|---|---|---|
| General Specifications | Battery Type | LFP314-2P52S |
| No. of Battery Modules | 48 (6 x 8) | |
| Configuration | 12P416S | |
| Cooling Method | Liquid Cooling | |
| BMS Communication | CAN, RS485, Ethernet | |
| Gravimetric | > 111 Wh/kg | |
| Volumetric | > 117 Wh/l | |
| Application Altitude | ≤ 4,000 m | |
| Electrical | Nominal Voltage Container | 1,331.2 V |
| Operating Voltage Container | 1,123.2 ～ 1,497.6 V | |
| Nominal Energy Container | 5,015.96 kWh | |
| Nominal Charge | 0.5 P | |
| Discharge Rate | 0.5 P | |
| Round Trip Efficiency | > 94 % | |
| Mechanical | Dimensions (L x W x H) | 6,058 x 2,438 x 2,896 mm |
| Weight Container (20 ft.) | < 45,000 kg | |
| Protection Level | IP55 | |
| Temperature Range | Operating | -30 °C ～ 55 °C |
| Storing (recommended) | -20 °C ～ 35 °C |
| Compliance Standards | IEC 62619, IEC 62477, IEC 63056, IEC 61000, UL 1973, UL 9540A, NFPA 855, UN 38.3, RoHS, REACH, |
|---|
